Route from a detector or sensor location

If you have enabled the display of detector or sensor icons in a map, you can route a detector or sensor's location to a destination location.

Note: You must have purchased FH Mobile Response Premium to view detector and sensor icons and information in FH Mobile Response. For information on upgrading from FH Mobile Response Basic to Premium, contact your FH sales representative.

Note: To route from a found location to a destination, you must have already defined a destination point for the route. Information on manually setting a destination point is available in Manually define a destination point for a route

1. (If you have not done so already) Display the detectors or sensors you want to work with, as described in Display or hide detector and sensor locations on a map.

2. Do one of the following.

   • Choose Go → Tools → Detectors → List / Filters.
   • On the Incident ribbon, in the Detectors section, click List / Filter.

   At the bottom of the interface, the Detector Browser appears, displaying a list of all the detectors or sensors. Each entry displays a color-coded status, brand type, ID, porting information, and a time stamp of the reading, depending on the sensor setup.



   The selected detector or sensor reading is highlighted in the Detector Browser, and its location on the map is marked with a red push-pin icon.

3. (Optional) Display sensor data specific to the detector or sensor selected in the Detector Browser in one of these ways.

   • Choose Go → Tools → Detectors → Detector and Sensor Info.
   • On the Incident ribbon, in the Detectors section, click Detector and Sensor Info.

   To the right of the map, the Detector Information pane appears, displaying data for all the sensors in the selected detector, or for the single selected sensor.



4. (Optional, in the in the Detector Browser pane) Filter the list of detectors or sensors, as described in Filter detector or sensor readings.

5. Select the detector or sensor you want to route from in one of these ways.

   • In the Detector Browser pane, click the listing corresponding to the detector or sensor you want to select.
   • To the right of the map, in the View / Op toolbar, click the Select / Drag icon, then in the map, click the detector or sensor you want to select.

   The push-pin icon on the map moves to the location of the detector or sensor.

6. Do one of the following.

   • On the right side of the Detector Browser pane, click Route From
   • At the bottom of the Detector Information pane, choose Map Commands → Route From.

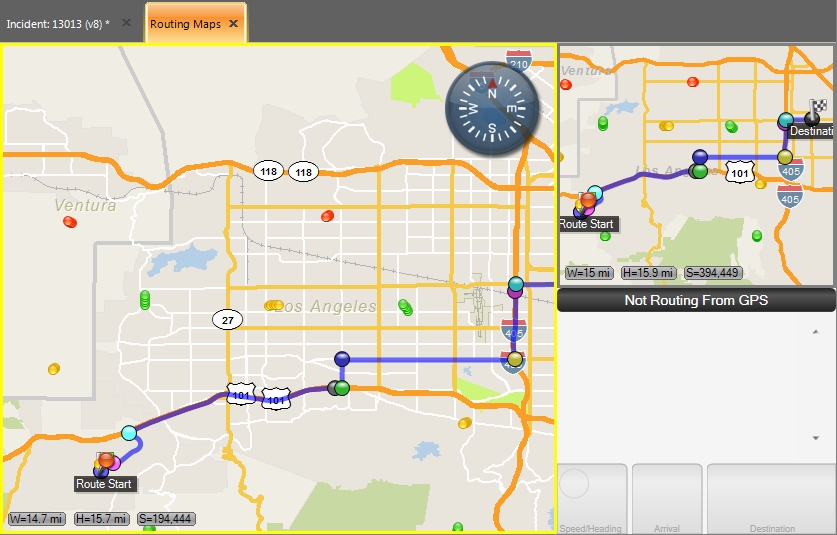

   The Routing Maps tab opens, the Route Start label appears on the map below the selected detector or sensor's push-pin, the route from the detector or sensor to the destination point you selected earlier appears on the map as a thick blue line, and each turn is identified by a colored dot.



   If you are not using a GPS device, on the Routing Maps tab, the turn-by-turn directions pane in the lower right corner displays the message Not Routing From GPS, and only the address of the destination point appears in the pane. If you are using a GPS device, the turn-by-turn directions pane populates with additional information.
