Email or fax a patient record

You can email or fax a patient record to the destination in the patent's record, if that destination has an email address or a fax number defined for it.

The destination is the physical location where the patient was transported by the EMS unit creating the ePCR. This can include hospitals, medical centers, nursing homes, another EMS unit, a residence, a morgue, and so forth.

Note:

  • Valid destinations to fax a patient record must be medically appropriate locations, defined in the Admin module, under General > Locations > location type. The email address and fax number must be configured prior to sending an email or fax with the patient's record.

  • Emailing is available to all agencies.

    Caution: The email is not secure, and does not protect PHI.

  • Faxing the patient record is only available to agencies that pay for this service.

Information on defining incident locations is available in Configure location information.

    1. Do one of the following.

      • (If you are already working in the ESO Suite) Click the Home icon in the upper left corner of the screen.

        1. In a web browser, go to https://www.esosuite.net/EsoSuite.

          The ESO Suite login screen appears.

        2. Enter your user name, password, and agency name, then click Let's Go.

          If MFA is enabled, the Multi-factor authentication dialog box appears, displaying one or more methods you can use to verify your login credentials. The number of methods that appear in the dialog box depends on what MFA methods your ESO Suite administrators enabled in the Admin module.

          Click graphics
          to open them.

          Information on enabling MFA and specific MFA methods is available in the Admin module online help, in Configure multiple-factor authentication.

          Note: If your ESO Suite administrators have disabled MFA ("opted-out"), this dialog does not appear.

        3. (If the Multi-factor authentication dialog box appears) Depending on which buttons appear in the dialog box, verify your login in one of the following ways.

          1. Click MFA verification via authenticator app.

            The dialog box updates with boxes for entering the numbers of the authentication code, and the ESO Suite sends an authentication code to the authenticator application installed on your device.

          2. Open your authenticator application and note the authentication code currently displayed.

          3. Enter the authentication code displayed in the authenticator application.

          4. Click Log In.

          SMS

          1. Click MFA verification via SMS.

            The dialog box updates with boxes for entering the numbers of the authentication code, and the ESO Suite sends an authentication code to the phone number recorded in your PM records and identified with MFA codes.

          2. Enter the authentication code sent to your MFA-registered phone number.

          3. Click Log In.

          1. Click MFA verification via email.

            The dialog box updates with boxes for entering the numbers of the authentication code, and the ESO Suite sends an authentication code to your agency or department email address, recorded in your PM records.

          2. Enter the authentication code sent to your agency or department email address.

          3. Click Log In.

      The ESO Suite landing screen appears.

      Click graphics
      to open them.

      Note: If MFA is enabled, you can access and manage your MFA options through the PM module, on the Settings > Account page, as described in Manage a user account. If your agency or department has enabled MFA but has not purchased the full-featured version of the PM module, you can access your own MFA settings by clicking Change my Multi-Factor Authentication settings on the landing screen, then using the Settings > Account page that appears. If your agency has not enabled MFA, the Change my Multi-Factor Authentication settings link does not appear on the landing screen.

    2. On the top side of the home screen, click EHR.

      Tip: If your screen or browser window is too narrow to display all your agency's ESO Suite module icons, an options icon appears on the right side of the icon bar. If you click the options icon, a menu appears containing additional module icons.

      The EHR screen appears, displaying a list of patient records in the EHR module. The most-recent records appear at the top of the list.

      Different record status icons can appear in the list.

      Icon Status

      Unlocked/Draft

      The patient record exists in the ESO Suite database, and all crew members listed in the patient record may edit all fields in the record. ESO Suite administrators and personnel with security roles of either EHR Supervisor or EHR Manager can edit non-clinical fields.

      Mobile

      The patient record exists on the mobile device, and has not been synchronized with the ESO Suite database. ESO Suite administrators, personnel with security roles of either EHR Supervisor or EHR Manager, and all crew members listed in the patient record can only access a print view of the record.

      Once the Mobile record synchronizes with the ESO Suite database. the record reflects its current status.

      Locked

      The patient record exists in the ESO Suite database, and is locked. Only non-clinical fields can be edited by crew members listed in the patient record, ESO Suite administrators and personnel with security roles of either EHR Supervisor or EHR Manager.

  2. Find the patient record you want to work with.

    Information on searching for a record is available in Search for a patient record.

  3. For the patient record you want to unlock, from the record's list item menu, choose Email or Fax.

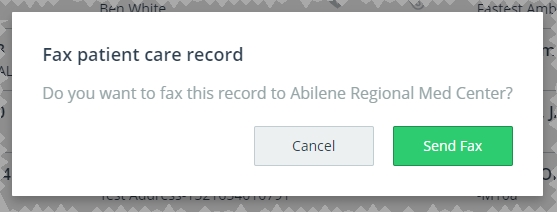

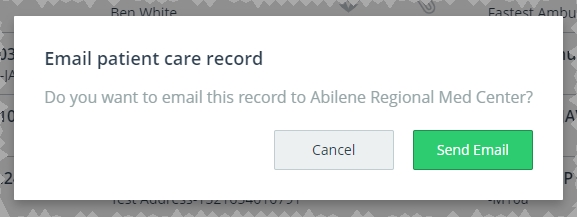

    The Email patient care record or Fax patient care record dialog box appears.



  4. Click Send Email or Send Fax.

    The EHR module sends the patient record to the email address or fax number associated with the patient's destination location, and the patient list reappears.
